Product Type

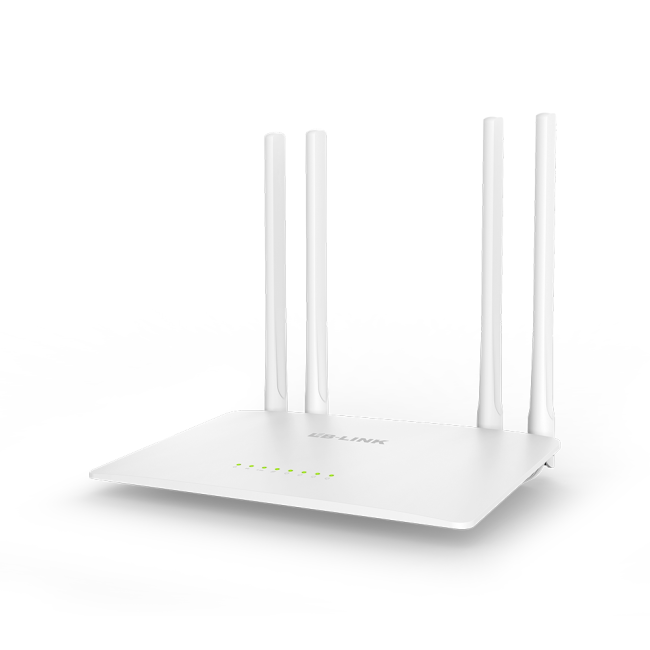

AC1200 Wireless Dual Band SMART Router
Protocol Standard
IEEE 802.11a/b/g/n/ac, IEEE 802.3, IEEE 802.3u,
CSMA/CD, TCP/IP
WAN Type
DHCP/Static IP/PPPoE/PPTP/L2TP
Wireless Security
IP/MAC Address Filter, WPA-PSK/WPA2-PSK
Wireless Transmission Power
2.4GHz (MAX):17dBm, 5GHz (MAX):17dBm
Sensitivity
2.4GHz：
300Mps:-68dBm@10%PER
135Mps:-70dBm@10%PER
54M: -75dBm@10%PER
11M: -92dBm@8%PER
6M: -90dBm@10%PER
1M: -94dBm@8%PER
5GHz：
11ac HT20: -65dBm@10%PER
11ac HT40: -62dBm@10%PER
11ac HT80: -57dBm@10%PER
Interface
One 10/100Mbps WAN port
Four 10/100Mbps LAN ports
Led lights
Power, 2.4G_WIFI, 5G_WIFI, WPS, WAN, LAN1-4
Antenna
4*6dBi Antennas
Transmission
Up to 1167Mbps
Access Internet
PPPOE, Repeater, Static IP, DHCP, PPTP, L2TP
Button
One Reset / WPS Multiplex button
Environment
Operating Temperature: 0℃~40℃(32°F~104°F)
Storage Temperature: -20℃~70℃(-4°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
